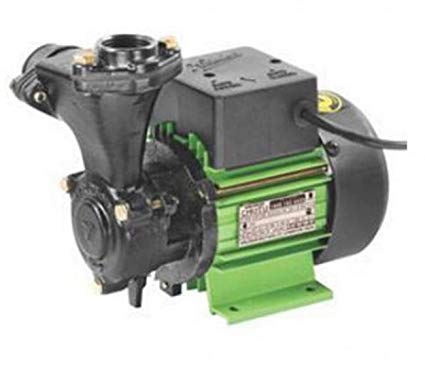

Kirloskar CHHOTU Mini Family Pump

This highly efficient pump which is lightweight and easy to handle is also UPS compatible.

Special Motor design can work on UPS

It is capable of priming up to 3 meters static suction lift without a foot valve , at rated head & discharge

‘B’ class of Insulation.

Motor can withstand with wide voltage fluctuation from 180-240Volts.

Light weight pump for easy handling

Capacitor inside terminal box.

TEFC capacitor starts and run motor

Water supply for domestic use in Bungalows, Apartments, Hotels, Farmhouses etc.

Useful in home pressure booster systems, lawn sprinklers, overhead tanks and watering for gardens.

Technical Specifications

Head : 6 to 26 meters

Capacity : 1980 to 360 LPH

Power Rating : 0.37 Kw / 0.5 HP

Voltage Range : 180 to 240 Volts (1Phase)

Material of Construction

Impeller : Brass

Pump shaft : Carbon steel

Delivery Casing : Cast Iron

Mounting casing : Cast Iron

Motor Body : Extruded Aluminum

Cover NDE : Aluminum

Mechanical seal : Carbon ceramic
