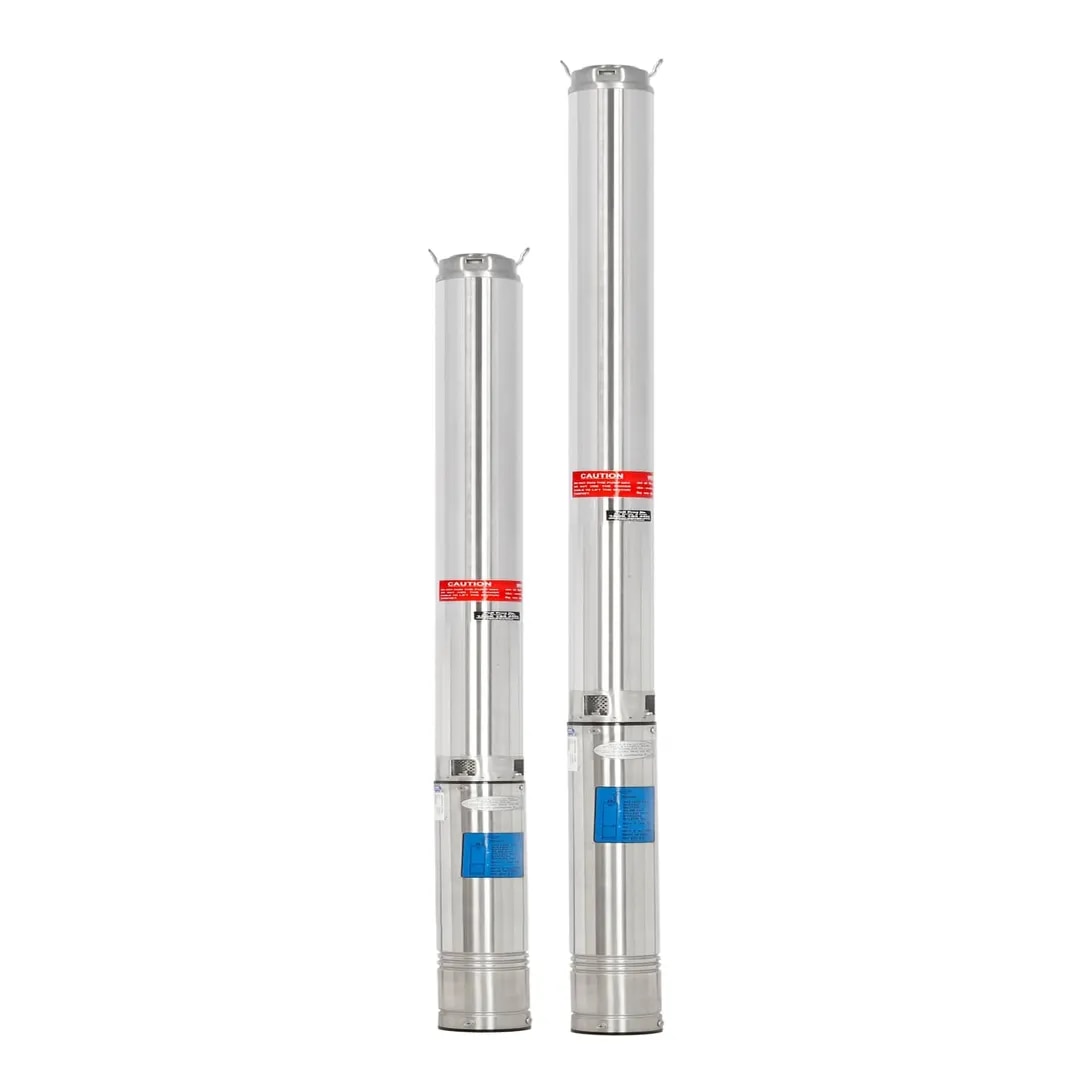

Kirloskar KU4

Kirloskar KU4

Domestic and Community Water Supply

Water Supplies for High Rise Building

Gardening and Small Farm Irrigation

Construction Site

Ground Water Supply to Water Works

SPECIFICATIONS

Head Range: Up to 251 metres

Discharge Range: Up to 350 LPM

Power Ratings: 0.37 to 4.0 kW (0.5 to 5.5 HP)

Voltage Range: 150 to 240 volts (single phase) 280 to 440 volts (three phase)

Type of Cooling: Oil-cooled

Insulation: F class

Protection: IP 68

MATERIAL OF CONSTRUCTION

•Pump Housing: Stainless Steel

•Pump Shaft: Stainless Steel

•Motor Housing: Stainless Steel

•Motor Shaft: Stainless Steel

•Motor Bearing: Ball Bearing

•Pump Bushes: Gun Metal

•Impeller: Noryl

•Diffuser: Noryl

•NRV: Stainless Steel

•Suction: Stainless Steel

FEATURES

High Efficiency and Energy Saving Design

CED – Cathode Electro Deposition Coating

Dynamically Balanced Rotating Parts

Designed to Prevent Overloading

Lightweight and Compact Design

Splined Shaft

Flatter Efficiency Curve

Suitable for Horizontal Applications
